High Speed Flexo Printing Slotting Machine For Carton Box

Place of Origin : Hebei, China (Mainland)

Brand Name : Zhenxing Packaging

Model Number : XFSYKM

Certification : CE

Supply Ability : 100 Sets Per Year

Packaging Details : 1.Outside package:Sandard export wooden cases 2.Inner package:Stretch film

MOQ : Negotiation

Price : Negotiation

Type : Other

Condition : New

Packaging Type : Bags, Cartons, Case

Automatic Grade : Automatic

Driven Type : Mechanical

Voltage : 380V 50HZ

Power : 30-45KW

Weight : 15-30T

Dimension(L*W*H) : 12000X1500X2200MM

product name : high speed flexo printer machine

keyword : printer machine

Port : XINGANG CHINA

Delivery Time : 80 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

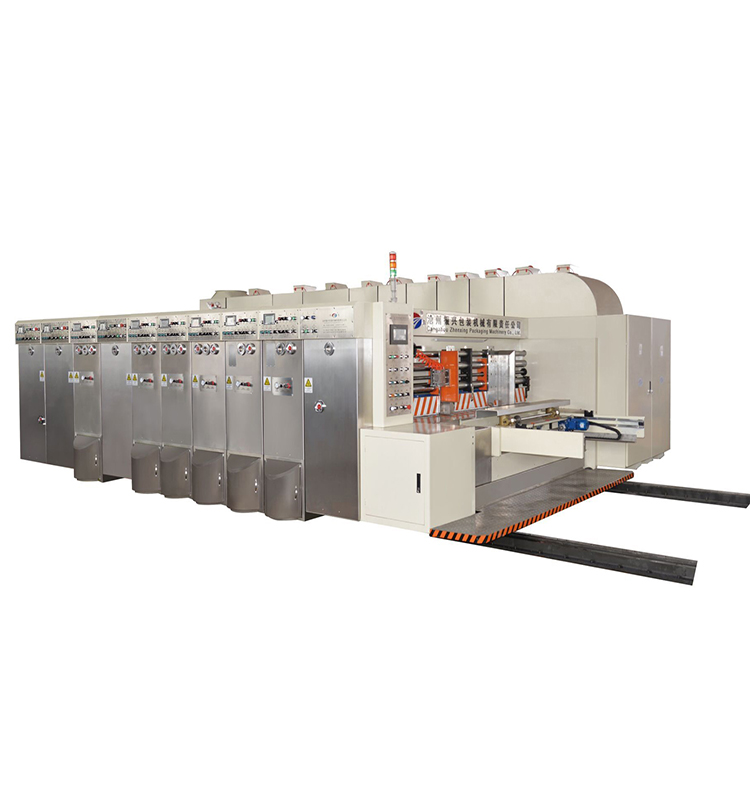

High Speed Flexo Printing Slotting Machine For Carton Box

Function of the whole machine

The machine adopt computer control, automatic ,adjustment,can store with 999 orders of carton ,quickly change the carton size ,simple and save time for adjustment

Lead edge feeding unit adopt servo motor drive ,adjustable air volume ,never damage the strength of the cardboard

The cardboard in all printing unit adopt vacuum transmission ,high precision and stable ;Enclosed double doctor blade combined with ceramic anilox roller ,can distribute the ink enenly

Feeding unit and Die cutting unit are independently drive by Rexroth servo motorwith is made in Germany , it has the  high precision since there is no accumulated error of grearsgap

The adjusting system is precise so that we can get a good effect when adjusting the pressure of inking and printing

The driving gears adopt 20CrMnTi high quality alloy steel which is heat treated and polished

All the connection between gear and roller adopt expanding sleeve, long life and no gaps after long time use

All the electric part ,bearing and pneumatic parts adopt national stand

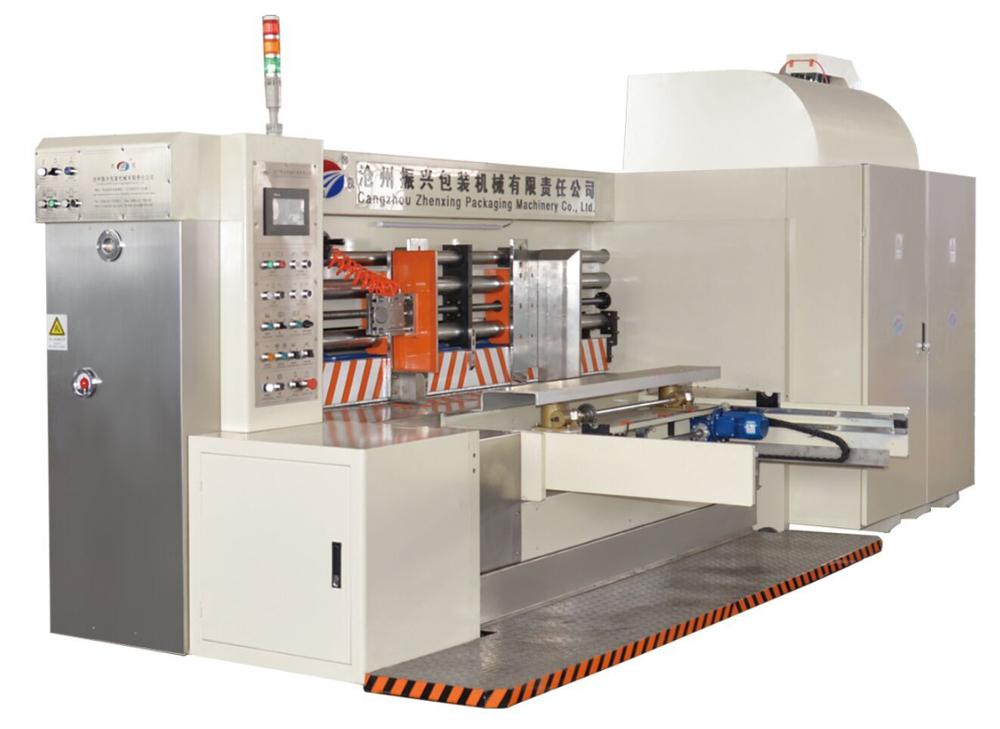

High Speed Flexo Printing Slotting Machine For Carton BoxFeeding Unit

It is independently driven by servo motor ,having a long service life since there  is no wear and tear of gear box . It also has the function of long-travel feeding

The induce draft fans can effective remove the dust of internal machine and the dust on the surface of cardboard together with brush to improve the printing quality

It is convenient to adjust the location of side/ front guides and the gap between feeding rollers by PLC

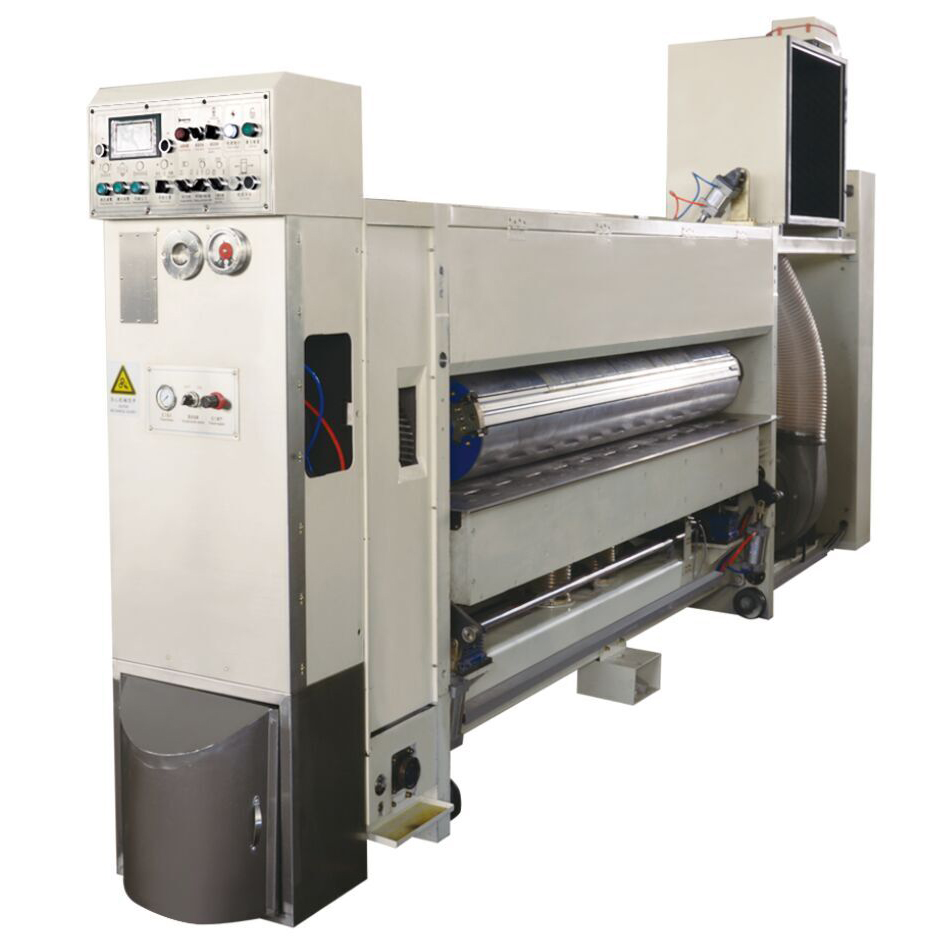

High Speed Flexo Printing Slotting Machine For Carton BoxPrinting unit and Oil coating unit

Enclosed double doctor blade combined with ceramic anilox roller ,can distribute the ink enenly .It can improve the effect of printing dots of single color and multi color overprinting

The pneumatic diaphragm pumps are used to supply the ink .There are two inlets and two outlets in each pump which can save the ink and have a greater efficiency .The inking system  is automatic circulated and will warm when lacking ink

 The printing roller has the function of skew emendation to the printing plate ,which makes the hanging operation convenient

By inputting data on the human-computer ,we can have it automatic to adjust the gap between anilox roller and pressing roller as well as the location of printing roller in the direction of  the breadth

The transmission is carried out by the ceramic wheels and adjustable vacuum suction

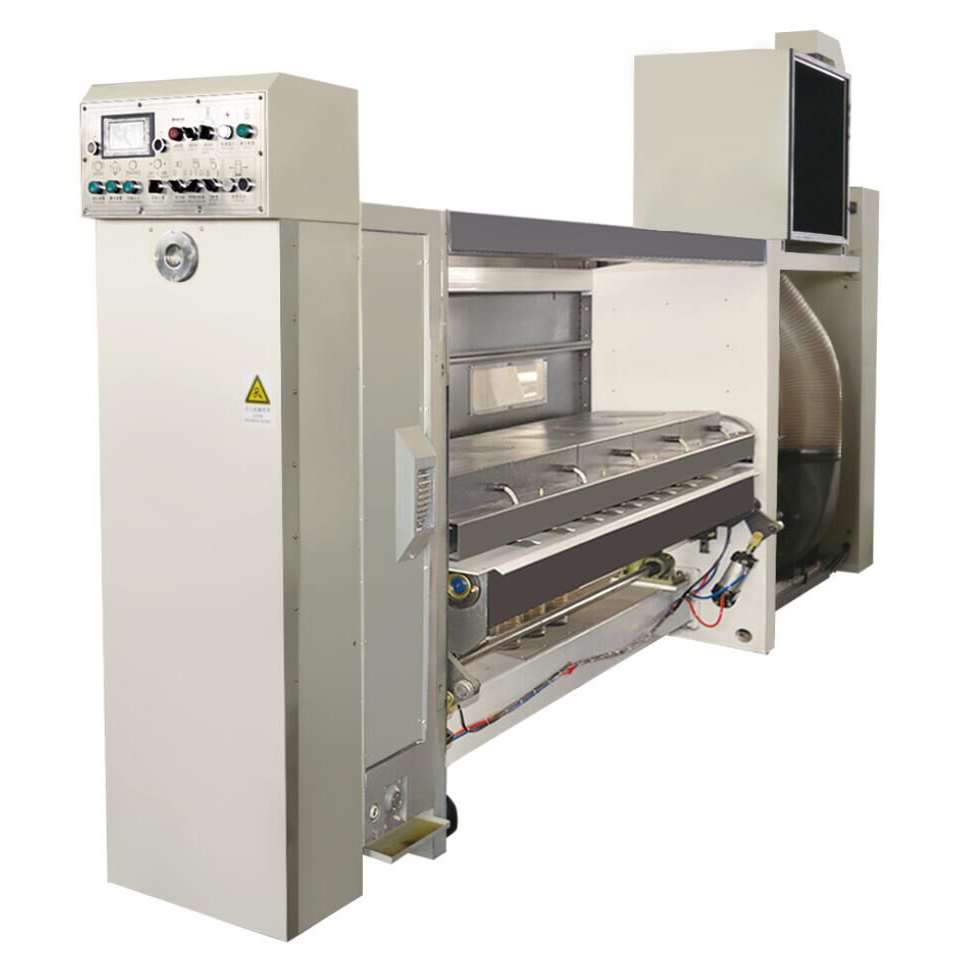

Drying unitHigh Speed Flexo Printing Slotting Machine For Carton Box

The transmission is carried out by the ceramic wheels and adjustable vacuum suction

The infrared or ultraviolet drying unit (optional ) can improve the quality and speed of multicolor printing

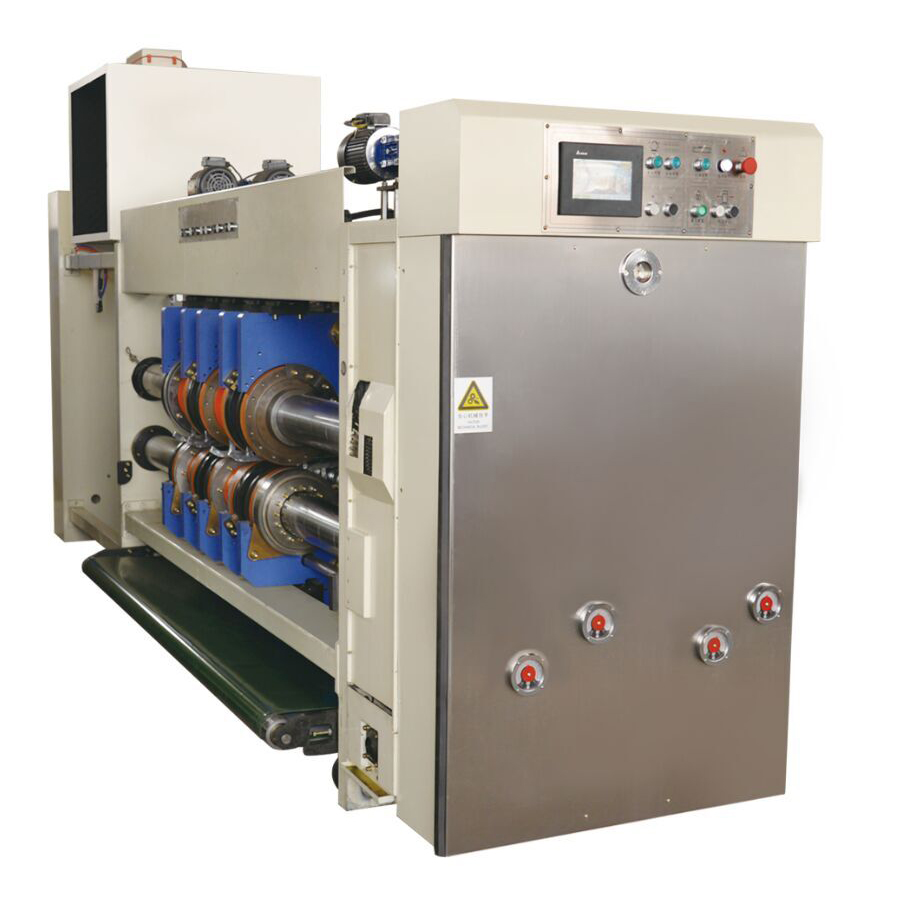

Function of Slotting UnitHigh Speed Flexo Printing Slotting Machine For Carton Box

With pre-creasing wheels for prevent the cardboard rupture while creasing

The height of the carton adopt PLC and electric input data adjustment touch screen control

The phase of the slotting unit adopt PLC and electric 360° adjust ,accord the error to input the adjust data ,can be adjusted while the machine running or stop

The slotting knives and the creasing wheels horizontal moving adopt electric synchronous adjustment .PLC with touch screen adjustment, input the size of the carton into the touch screen ,will automatic adjusting

Creasing space and knife roller space adjustment adopt self -locking structure

The carton height adjustment have a anticollision device for the slotting knives,will not destroy the machine

An anticollision device is used while the slotting knife plate horizontal moving (Electronic formula)

The slotting knives is sawtooth ,adopt alloy steel material and after heat treatment and grinded , more hardwearing and sharrp-edged .Two- piece type cutting knives ,sharp-edged and high precision .The breadth is 7mm

The hole and handle tool as an option

Linear guideway lateral moving device with universal cross joints

Precious ball screw shaft .long life time





Function of SlHigh Speed Flexo Printing Slotting Machine For Carton Boxotting Unit

With pre-creasing wheels for prevent the cardboard rupture while creasing

The height of the carton adopt PLC and electric input data adjustment touch screen control

The phase of the slotting unit adopt PLC and electric 360° adjust ,accord the error to input the adjust data ,can be adjusted while the machine running or stop

The slotting knives and the creasing wheels horizontal moving adopt electric synchronous adjustment .PLC with touch screen adjustment, input the size of the carton into the touch screen ,will automatic adjusting

Creasing space and knife roller space adjustment adopt self -locking structure

The carton height adjustment have a anticollision device for the slotting knives,will not destroy the machine

An anticollision device is used while the slotting knife plate horizontal moving (Electronic formula)

The slotting knives is sawtooth ,adopt alloy steel material and after heat treatment and grinded , more hardwearing and sharrp-edged .Two- piece type cutting knives ,sharp-edged and high precision .The breadth is 7mm

The hole and handle tool as an option

Linear guideway lateral moving device with universal cross joints

Precious ball screw shaft .long life time

High Speed Flexo Printing Slotting Machine For Carton Box

Technical parameters :



Parameter

unit

Model

XFSTKM

990-2000

XFSTKM

990-2200

XFSTKM

4220-2200

XFSTKM

4220-2400

Max machinery speed

Pcs/min

300

300

180

180

Economic printing speed

Pcs/min

250

250

150

150

Max size of paperboard

mm

990×2200

990×2400

13000×2400

1300×2600

Min size of paperboard

mm

300×600

300×600

450×600

450×600

Min space of slotting

Obverse knife

mm

160×160×160×160

160×160×160×160

Reverse knife

mm

280×80×280×80

280×80×280×80

Skip feed size

mm

1100×2200

1100×2400

1500×2400

1500×2600

Max printing area

mm²

950×2000

950×2200

1250×2200

1250×2400

Thickness of standard printing plate

mm

7.2

7.2

7.2

7.2
